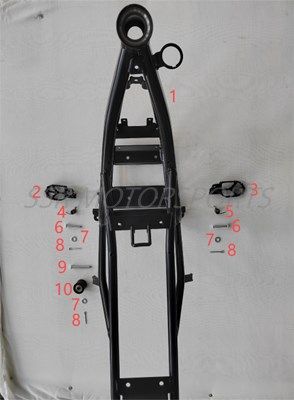

FRAME & Components Diagram SR-E500

Name: FRAME & Components Diagram SR-E500
Availability: InStock

$0.00

Select Components below (Check each part you need)

#1 FRAME BLACK Item Number: A00662-11-00 (Commonly Out of Stock)

#2 LEFT FOOTPEG Item Number: A00640-05-00

#3 RIGHT FOOTPEG Item Number: A00641-05-00

#4 LEFT FOOTPEG SPRING Item Number: A00642-05-00

#5 RIGHT FOOTPEG SPRING Item Number: A00643-05-00

#6 FOOTPEG PIVOT PIN Item Number: A00644-05-00x2 (+$4.00)

#7 WASHER 8X16X1.5 Item Number: A00013-21-01x3 (+$6.00)

#8 COTTER PIN 2.5X24 Item Number: A00019-28-01x3 (+$6.00)

#9 CHAIN ROLLER PIN Φ8X58+Φ3X50.5-4 Item Number: A00645-05-00 (+$2.00)

#10 CHAIN ROLLER Item Number: A00646-05-00 (+$3.50)

#11 DRIVE CHAIN 06B-124L Item Number: A00440-07-00 (Commonly Out of Stock (+$31.50)

#12 RUBBER PLUG 12MM Item Number: A00674-11-00 (+$4.00)
